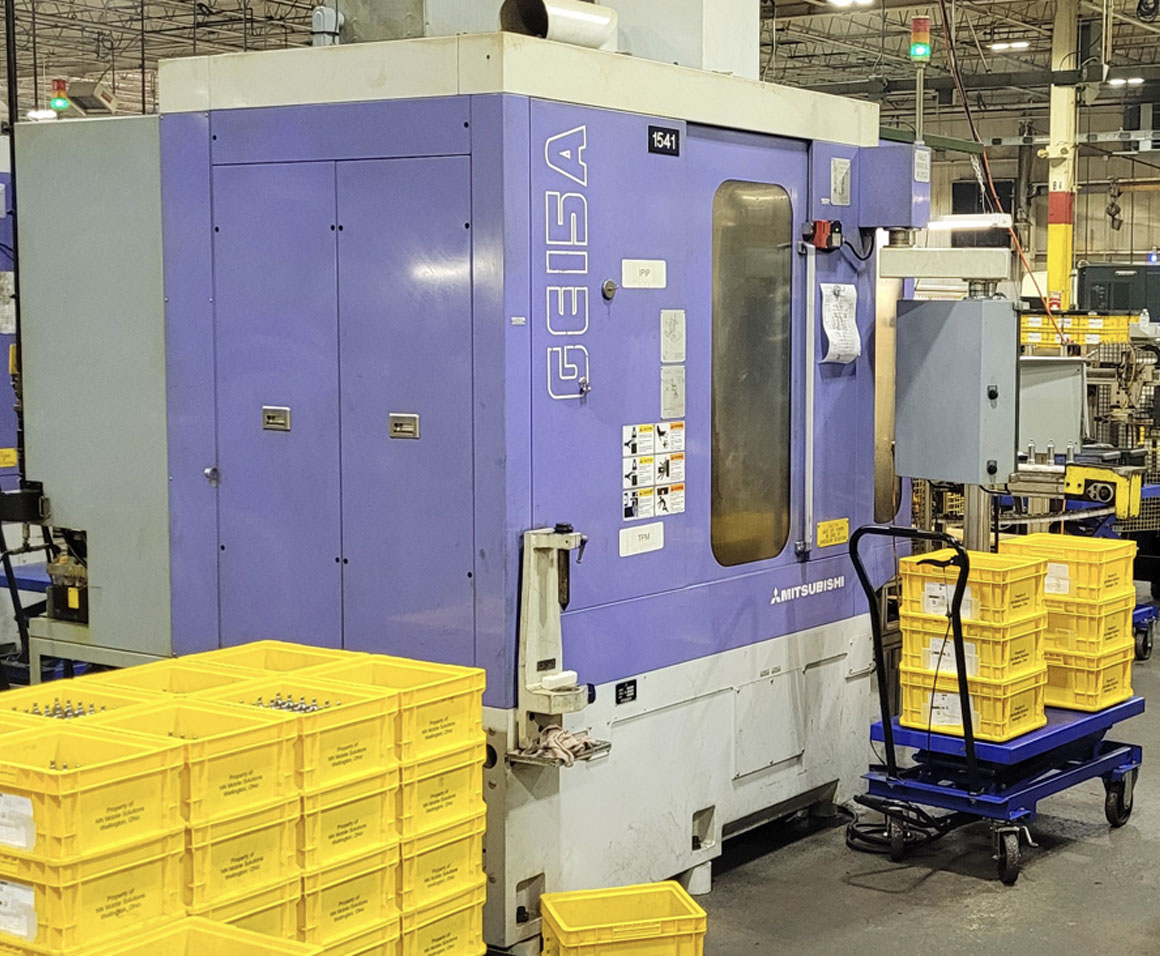

Gear Hobbing
The gear hobbing is process uses a conical cutter. During manufacturing both the cutter and the workpiece rotates with the cutter revolving around the gear blank. This process is suitable to make spur gears, worm gears, sprockets, and pinions.
Component sizes
|
General Tolerances
|
Hobbing is more accurate the machined gears but less accurate than grinding. It is suited for high volume lower mix production

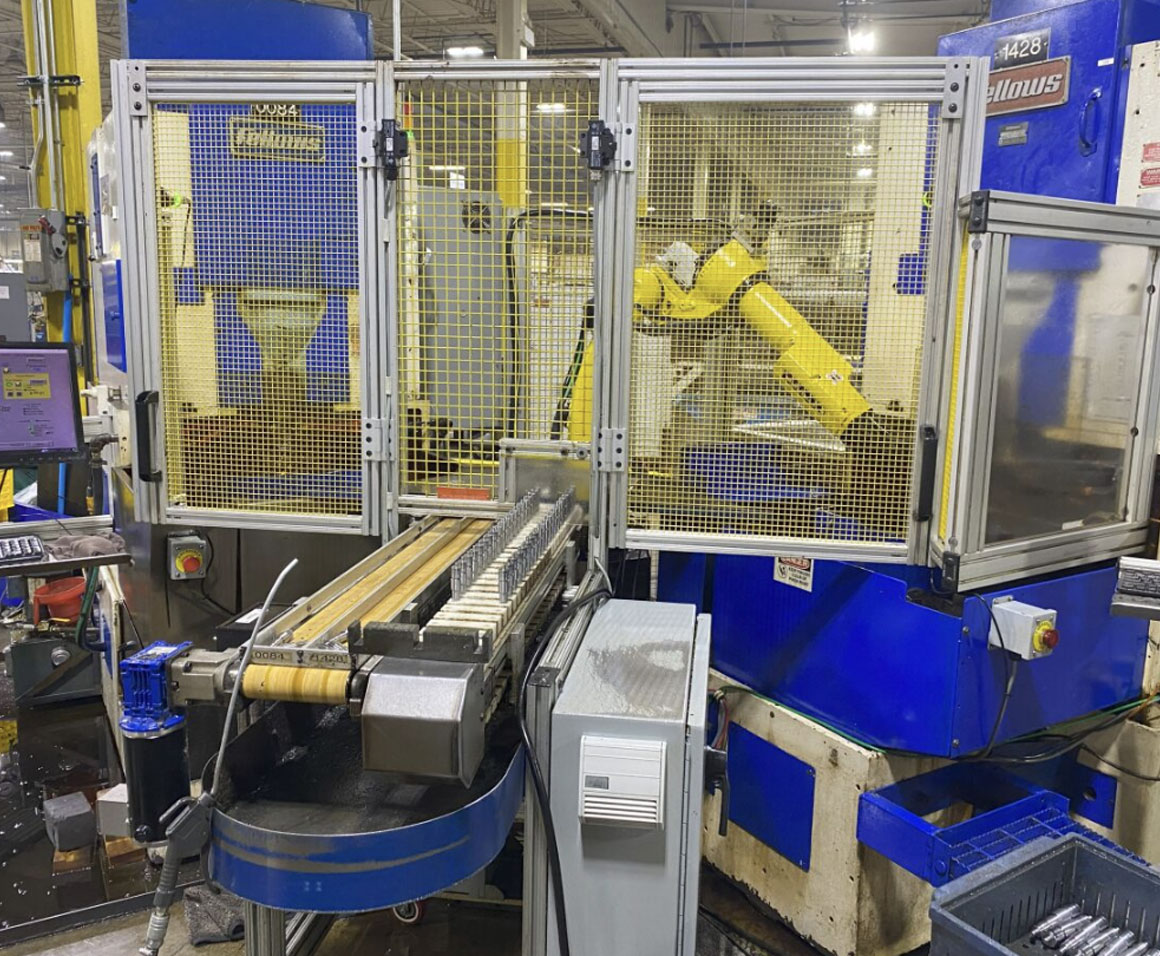

Gear Shaping
The gear shaping is a process that uses a cutter made to the geometric profile of the gear. The reciprocating motion of the cutter and the rotation of workpiece creates the desired gear shape. Helical gears, internal gears, and spur gears can all be manufacturing using gear shaping.
Component sizes
|
General Tolerances
|
Gear Shaping is more accurate the machined gears but less accurate than grinding. It is capable complex tooth profiles. It is suited for high volume lower mix production.
Multi-Axis CNC Turning Centers
NN Inc has Multi-Axis CNC Turning Center with wide ranges of capabilities making them well suited for Low volume high mix components. Machines are capable of drilling, milling, hobbing, broaching and skiving.
Component sizes
|
General Tolerances
|
Tighter tolerance can be achieved depending on datums and designs. Multi-Axis CNC Turning Machines are scalable to meet many different volume requirements economically.
